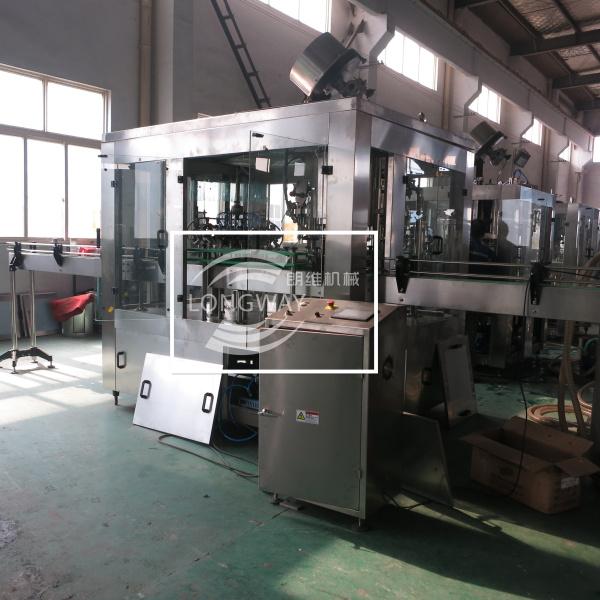

Our beer filling machine is designed specially for PET bottle with plastic screw cap,with the producing capacity from 500 bottles per hour to 20,000 bottles per hour.
It have the function of rinsing bottle , filling beer into bottle , cap bottles after filling. During the filling process, the bottles will be pumped to vacuum twice, to ensure no air in the bottle.
And all the filling volume can be controlled precisely. And also our machine is made of high quality stainless steel, stable and durable using.
| Model | BDGF 16-12-6 | BDGF 18-18-6 | BDGF 24-24-8 | BDGF 32-32-12 | BDGF 40-40-12 | ||||||
| Capacity | 1500 | 2500 | 4000 | 8000 | 12000 | ||||||
| Bottle shape & volume | Round or Square 200ML-3000ML | ||||||||||
| Bottle dimension | Bottle diameter ：φ50-φ110mm ; Bottle height:150-340mm | ||||||||||
| Cap details | PE Screw cap | ||||||||||
| Filling precision | ≤+/-5mm | ||||||||||
| Filling pressure(Mpa) | ≤0.4Mpa | ||||||||||
| Power(Kw) | 3 | 3.5 | 4.5 | 6.8 | 8 | ||||||
| Dimension(Mm) | 2250*1650*2250 | 2600*1965*2250 | 2980*2200*2250 | 3880*2200*2250 | 4000*2650*2500 | ||||||
| Weight(Kg) | 2800 | 3500 | 4500 | 5500 | 6500 | ||||||
