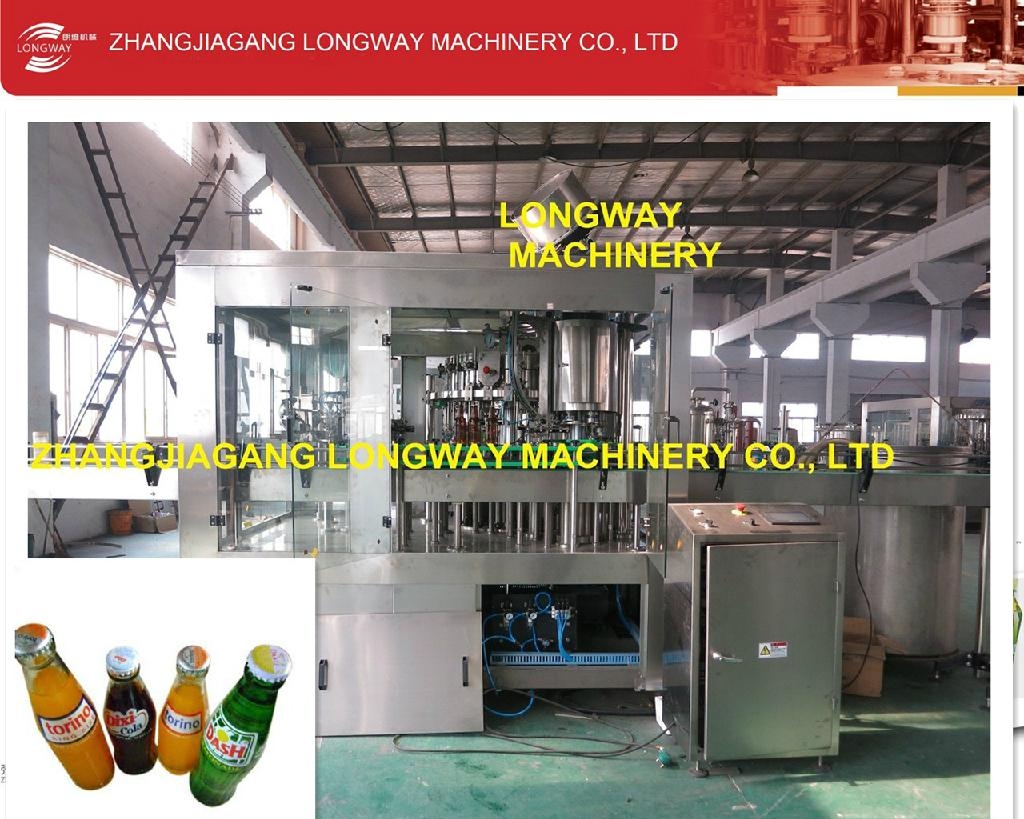

Automatic Carbonated Water Filling Machine / Machinery / Line
1.Washing filling and capping 3-in-1
2.Filling range: 250-1500ml
Automatic Carbonated Water Filling Machine / Machinery / Line
Description:
The automatic carbonated water filling machine / machinery / line is mainly used in production gas containing water of PET polyester bottle-packing carbonated beverage, such as Coca-cola, Pepsi,soda,soda water, spirit drink,etc.
The automatic carbonated water filling machine / machinery / line carries out washing bottle, filling and capping on one machine.The whole machine design is reasonable. The apperance is beautiful and the maintenance is convenient. The automatic carbonated water filling machine / machinery / line adopts bottle handing technology to make changing bottle more convenient,faster and easier. The main machine adopts advanced PLC control,touch screen and no-bottle,no cap system. The key electric elements are from internationl famous brand.
Characteristics of Automatic Carbonated Water Filling Machine / Machinery / Line:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main Technical Parameters:
| Model | DCGF 14-12-4 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 | DCGF 60-60-15 |
| Production Capacity (500ml b/h) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 | 16000-20000 | 20000-24000 |
| Filling Precision | ≤+5 mm (liquid level) | ||||||
| Filling Pressure(Mpa) | ≤0.4 | ||||||
| PET Bottle Specification(mm) | bottle diameter:50-100mm, bottle height:150-310mm | ||||||
| Suitable Cap Shape | plastic screw cap | ||||||
| Total Power(kw) | 4.4 | 5.2 | 6.2 | 6.2 | 7.5 | 11 | 15 |
| Total Weight(kg) | 2500 | 3500 | 4500 | 6000 | 7200 | 10000 | 115000 |
| Overall Dimension(mm) | 2250*1650*2250 | 2600*1965*2250 | 2980*2200*2250 | 3880*2200*2250 | 4000*2250*2500 | 5500*3500*2500 | 6500*5500*2550 |
